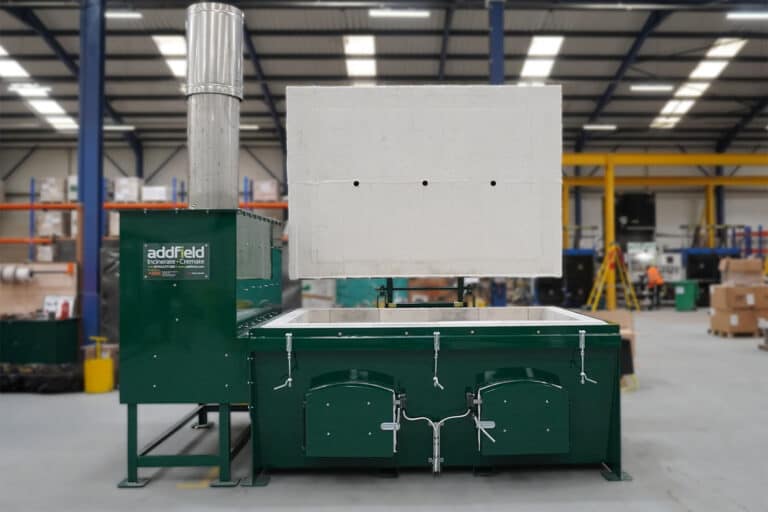

TB-AB Equine Cremator — Large Horse Cremation Machine

  • Category: PET Cremation

The TB-AB Equine Cremator is our largest top-loading equine cremation unit, purpose-built to handle horses of any size. It’s an optimized version of our standard TB-AB platform, with an additional burner in the primary chamber and specially angled burners developed directly from customer feedback to improve cremation efficiency for large equine remains.

The machine includes an integrated excess air and rapid cooling system that does two things: it supplements combustion air to reduce fuel use and improve burn times during the cycle, and it rapidly cools the refractory wall once a cycle finishes — meaningfully cutting the turnaround time before the next cremation can begin.

Key Benefits

  • Additional and specially angled burners for optimized equine cremation efficiency
  • Two front-facing de-ashing doors, with an optional side-mounted viewing port
  • Integrated excess air and rapid cooling system for faster turnaround between cycles
  • Touch-screen PLC controller with high-low burn cycles and data logging
  • Fully automatic cycle — the machine can be left unattended from start through cool-down
  • Protective outer ram bar and robust steel construction up to 10mm thick

Specifications Snapshot

  • Chamber volume: approximately 4.18 m³
  • Loading chamber size: 2.45m x 1.6m x 0.92m
  • Loading method: top-loading
  • Gas retention time: 2 seconds
  • Fuel options: diesel, LPG, natural gas, biofuel

Ideal For

  • Dedicated equine cremation businesses
  • Veterinary practices with a large-animal caseload
  • Farms and stables needing on-site equine cremation capability
  • Operations wanting the fastest possible turnaround between large-animal cremations
Download the full specification sheet

Frequently Asked Questions

How is the TB-AB Equine different from a standard TB-AB animal incinerator?
It’s been specifically optimized for equine cremation with an additional burner, specially angled burners for efficiency, and two front-facing de-ashing doors, based directly on feedback from equine cremation businesses.
It cools the refractory wall quickly after a cycle completes, which cuts down the wait time before the next cremation can start — meaningfully increasing how many cremations you can run in a day.
No — once started, the fully automatic cycle runs through to completion and the subsequent cool-down without needing operator intervention.
Addfield’s machines are independently proven to save around 40% on fuel compared with other manufacturers’ equipment, which adds up across a high volume of large-animal cremations.

Call to Action

Running or starting an equine cremation business?

Tell us your expected volume and we’ll confirm the TB-AB Equine Cremator fits your operation.
